CM Mini Orbital
The CM Mini Orbital single disc machines are the most compact models in the Comac range, capable of fully exploiting orbital technology, perfect for small and hard-to-reach spaces. Available with three different types of bases: rectangular CM Mini Orbital, round CM Mini Orbital R, or with the shape of precision orbital tools, CM Mini Orbital TR, these machines represent the professional solution for cleaning, scrubbing, polishing, and finishing of edges, corners, steps, skirting boards, and all small spaces.
The oscillating head of the CM Mini Orbital range adapts to all surfaces and works effectively even on uneven floors, minimizing user effort. Furthermore, these “mini” single disc machines offer excellent stability, maneuverability, and a robust, compact frame, yet are easy to transport, allowing you to use them anywhere. All models are available in both corded and battery-powered versions for use even in places where it is not possible to connect to the electrical network.
The oscillating head of the CM Mini Orbital range adapts to all surfaces and works effectively even on uneven floors, minimizing user effort. Furthermore, these “mini” single disc machines offer excellent stability, maneuverability, and a robust, compact frame, yet are easy to transport, allowing you to use them anywhere. All models are available in both corded and battery-powered versions for use even in places where it is not possible to connect to the electrical network.
Compact orbital single disc machines: surface applications
The CM Mini Orbital range is the ideal solution for cleaning, heavy duty maintenance and floor finishing on marble, stoneware, cement, terracotta, resin, parquet and wood floors. Extremely versatile, this ultra-compact orbital single disc machines are the preferred choice of cleaning contractors, and they are perfect for working in healthcare, public, HoReCa and large-scale retail sectors.
-
Working width:
250 mm
-
Power supply:
cable/battery
-
Drive:
direct orbital
- Documents
- Request information
- FAQ
-
Working width:
250 mm
Power supply:
cable/battery
Drive:
direct orbital
- Documents
- Request information
- FAQ
Cm Mini Orbital E
Technical data
- Drive
Direct orbital - Working width (mm)
250 - Pad (mm)
250x135 - Oscillations (no.)
3300 - Max. power (W-hp)
165 - Net weight (kg)
10 - Dimensions of machine body (l x h x w) (mm)
120x130x265 - Handlebar extensibility from - to (mm):
970 - 1350 - Power supply
230V/50Hz* - Capacity of Li-ion battery (Ah):
- - Autonomy up to (min)
-
Cm Mini Orbital B
Technical data
- Drive
Direct orbital - Working width (mm)
250 - Pad (mm)
250x135 - Oscillations (no.)
3300 - Max. power (W-hp)
165 - Net weight (kg)
11,7 - Dimensions of machine body (l x h x w) (mm)
120x130x265 - Handlebar extensibility from - to (mm):
970 - 1350 - Power supply
36 V - Capacity of Li-ion battery (Ah):
5 - Autonomy up to (min)
75
Cm Mini Orbital R E
Technical data
- Drive
Direct orbital - Working width (mm)
280 - Pad (mm)
280x280 - Oscillations (no.)
2200 - Max. power (W-hp)
165 - Net weight (kg)
13 - Dimensions of machine body (l x h x w) (mm)
300x170x340 - Handlebar extensibility from - to (mm):
1000-1380 - Power supply
230V/50Hz* - Capacity of Li-ion battery (Ah):
- - Autonomy up to (min)
-
Cm Mini Orbital R B
Technical data
- Drive
Direct orbital - Working width (mm)
280 - Pad (mm)
280x280 - Oscillations (no.)
2200 - Max. power (W-hp)
165 - Net weight (kg)
13 - Dimensions of machine body (l x h x w) (mm)
300x170x340 - Handlebar extensibility from - to (mm):
1000-1380 - Power supply
36V - Capacity of Li-ion battery (Ah):
5 - Autonomy up to (min)
75
Cm Mini Orbital TR E
Technical data
- Drive
Direct orbital - Working width (mm)
325 - Pad (mm)
330x230 - Oscillations (no.)
2200 - Max. power (W-hp)
165 - Net weight (kg)
12 - Dimensions of machine body (l x h x w) (mm)
215x154x365 - Handlebar extensibility from - to (mm):
985-1365 - Power supply
230V/50Hz* - Capacity of Li-ion battery (Ah):
- - Autonomy up to (min)
-
Cm Mini Orbital TR B
Technical data
- Drive
Direct orbital - Working width (mm)
325 - Pad (mm)
330x230 - Oscillations (no.)
2200 - Max. power (W-hp)
165 - Net weight (kg)
12 - Dimensions of machine body (l x h x w) (mm)
215x154x365 - Handlebar extensibility from - to (mm):
985-1365 - Power supply
36V - Capacity of Li-ion battery (Ah):
5 - Autonomy up to (min)
75
Cm Mini Orbital E
Technical data
- Drive
Direct orbital - Working width (mm)
250 - Pad (mm)
250x135 - Oscillations (no.)
3300 - Max. power (W-hp)
165 - Net weight (kg)
10 - Dimensions of machine body (l x h x w) (mm)
120x130x265 - Handlebar extensibility from - to (mm):
970 - 1350 - Power supply
230V/50Hz* - Capacity of Li-ion battery (Ah):
- - Autonomy up to (min)
-
Cm Mini Orbital B
Technical data
- Drive
Direct orbital - Working width (mm)
250 - Pad (mm)
250x135 - Oscillations (no.)
3300 - Max. power (W-hp)
165 - Net weight (kg)
11,7 - Dimensions of machine body (l x h x w) (mm)
120x130x265 - Handlebar extensibility from - to (mm):
970 - 1350 - Power supply
36 V - Capacity of Li-ion battery (Ah):
5 - Autonomy up to (min)
75
Cm Mini Orbital R E
Technical data
- Drive
Direct orbital - Working width (mm)
280 - Pad (mm)
280x280 - Oscillations (no.)
2200 - Max. power (W-hp)
165 - Net weight (kg)
13 - Dimensions of machine body (l x h x w) (mm)
300x170x340 - Handlebar extensibility from - to (mm):
1000-1380 - Power supply
230V/50Hz* - Capacity of Li-ion battery (Ah):
- - Autonomy up to (min)
-
Cm Mini Orbital R B
Technical data
- Drive
Direct orbital - Working width (mm)
280 - Pad (mm)
280x280 - Oscillations (no.)
2200 - Max. power (W-hp)
165 - Net weight (kg)
13 - Dimensions of machine body (l x h x w) (mm)
300x170x340 - Handlebar extensibility from - to (mm):
1000-1380 - Power supply
36V - Capacity of Li-ion battery (Ah):
5 - Autonomy up to (min)
75
Cm Mini Orbital TR E
Technical data
- Drive
Direct orbital - Working width (mm)
325 - Pad (mm)
330x230 - Oscillations (no.)
2200 - Max. power (W-hp)
165 - Net weight (kg)
12 - Dimensions of machine body (l x h x w) (mm)
215x154x365 - Handlebar extensibility from - to (mm):
985-1365 - Power supply
230V/50Hz* - Capacity of Li-ion battery (Ah):
- - Autonomy up to (min)
-
Cm Mini Orbital TR B
Technical data
- Drive
Direct orbital - Working width (mm)
325 - Pad (mm)
330x230 - Oscillations (no.)
2200 - Max. power (W-hp)
165 - Net weight (kg)
12 - Dimensions of machine body (l x h x w) (mm)
215x154x365 - Handlebar extensibility from - to (mm):
985-1365 - Power supply
36V - Capacity of Li-ion battery (Ah):
5 - Autonomy up to (min)
75
Single disc machines CM Mini Orbital Features
- Professional super-compact orbital single disc machines that are easy to transport
- Compact orbital single disc machines recommended for all types of floor maintenance, heavy-duty cleaning, and polishing. Essential for finishing edges and corners of floors
- Effective in all small, hard-to-reach spaces
- Steel frame and PPL carter
- The orbital movement generates a constant orbit, allowing multiple passes over the same point
- Equipped with ergonomic grip handle
- Convenient start button and cable support
- The joint on the handlebars allows rotations up to 180° sideways and 90° backward
- The handlebar is released via a convenient foot-operated pedal
- Easy to transport thanks to the two rear wheels
- The CM Mini Orbital B, CM Mini Orbital R B, and CM Mini Orbital TR B are equipped with latest-generation lithium batteries for use where no electrical connection is available
- The lithium battery on the CM Mini Orbital B, CM Mini Orbital R B, and CM Mini Orbital TR B is positioned conveniently for quick and easy installation

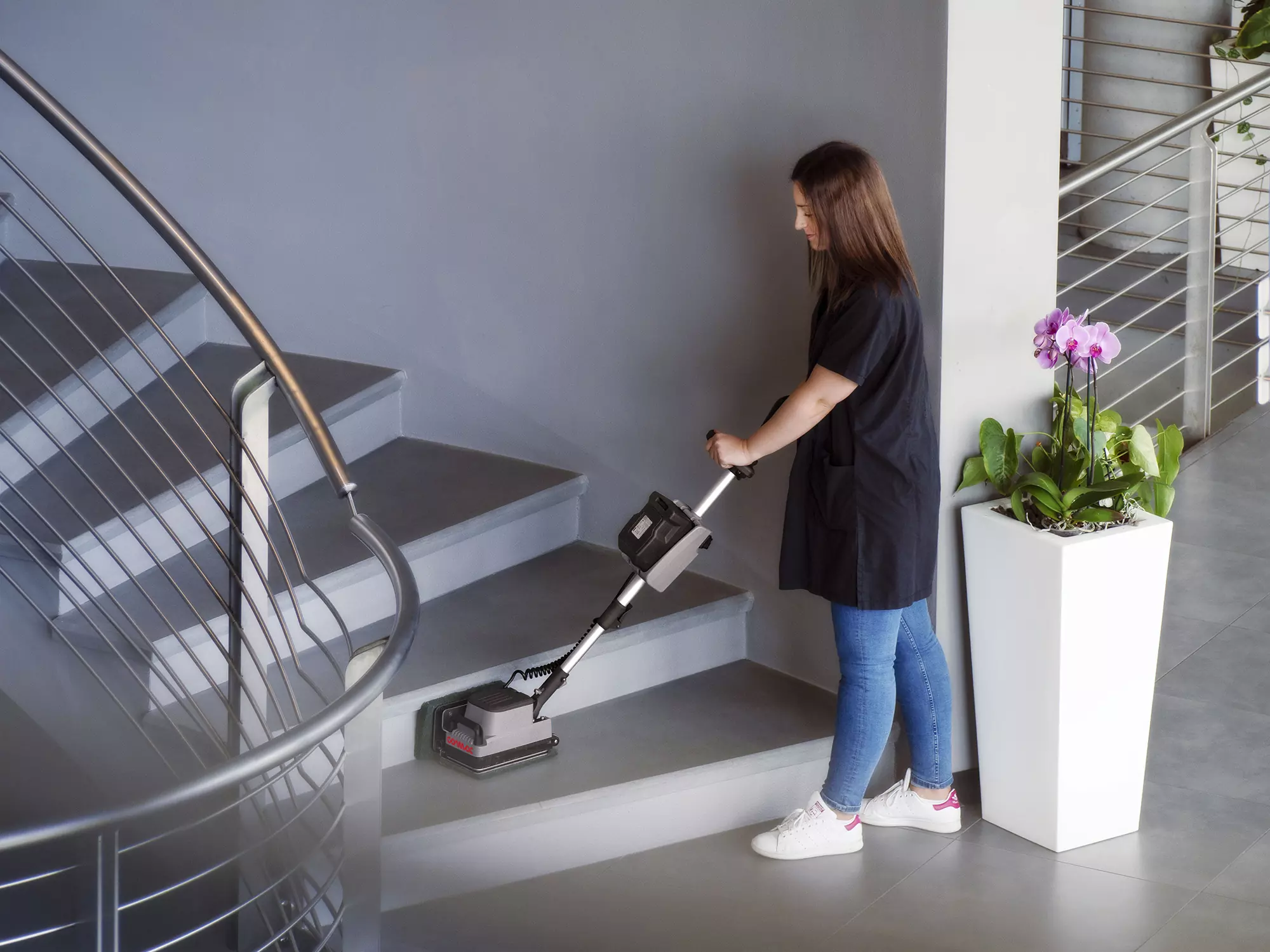

- “L” shape accessory kit (optional) for even easier cleaning of corners, including rounded ones, stair risers, and skirting boards
- One machine for multiple functions: The orbital system ensures performance for all tasks on various floor types thanks to its versatility and the availability of specific accessories, making this compact orbital single disc machines multi-functional
