CM43 Orbital

Single disc machines CM43 Orbital Features

• The ideal single disc machine for heavy duty work, treatments and extraordinary maintenance operations on floors
• A single machine for multiple functions: the roto-orbital system guarantees performance of all operations on various types of floor thanks to its versatility and the availability of specific accessories to make the single disc machine multi-purpose

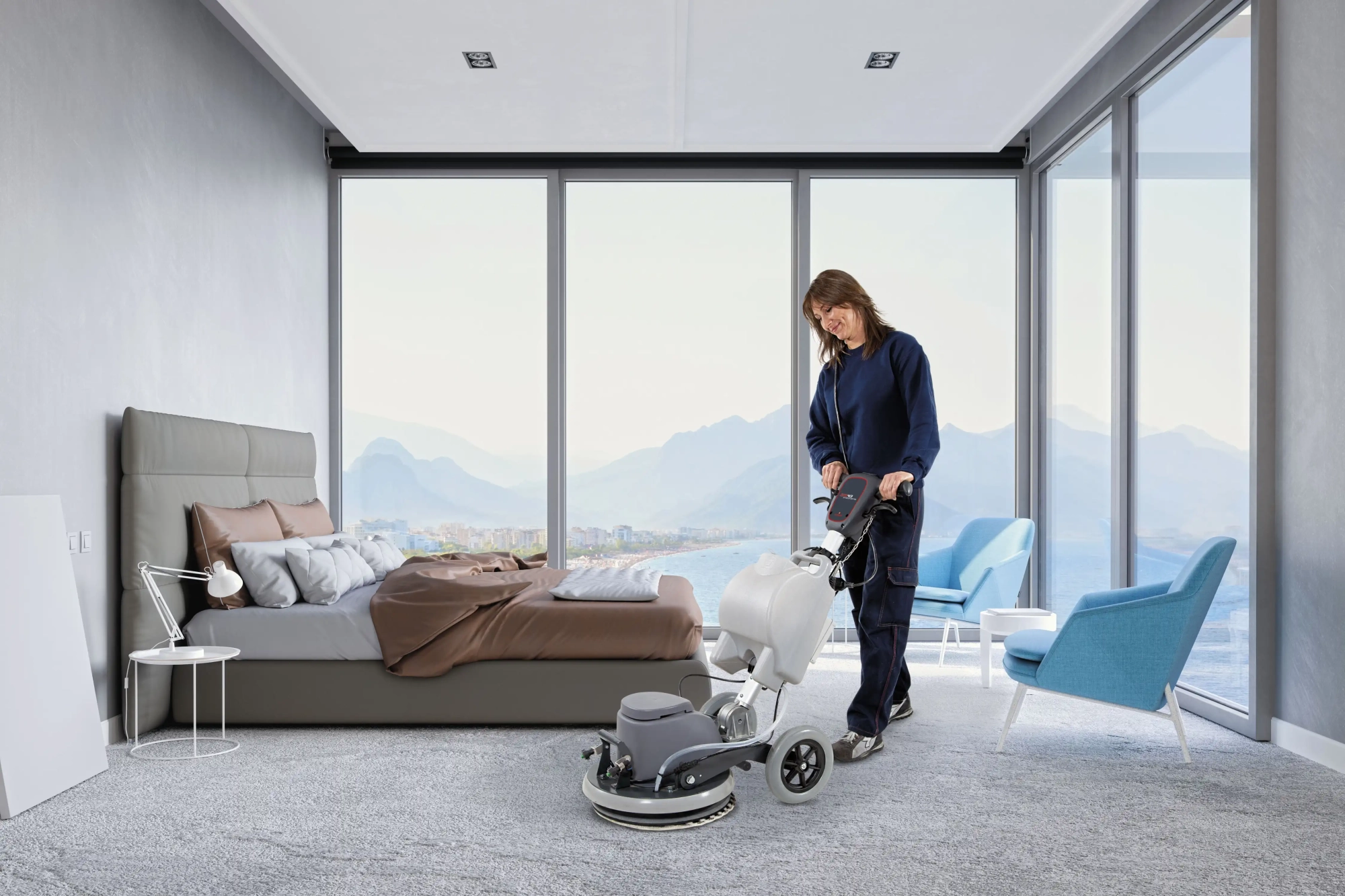

• CM43 Orbital Spray is a single disc machine suitable for applications such as heavy duty scrubbing, de-waxing, crystallization, polishing and micro-polishing of marble, stone, cement and wood floors. Thanks to the Spray Kit, it's also particularly suitable for cleaning carpeted floors and rugs
• Spray Kit with pump and two adjustable nozzles with switch for two solution spraying modes
• The pump of the CM43 Orbital Spray Kit uses an intake with filter in the solution tank and two adjustable nozzles
• Two movements in one: roto-orbital together with the natural rotary movement of the disc, which can vary from 0 to 90 rpm, generating a constant orbit that allows many passes over the same point very rapidly
• Perfect adhesion to the surface thanks to combining orbital and rotary movement: the working area is always constant and the brush/disc always level with the surface, adhering perfectly
• Forwards and backwards movement and easy swing: the brushing action is effective in every movement: forwards and backwards or swing, always level with the surface
• Less use of water and detergent: the orbital movement prevents water from being splashed outside the perimeter of the machines. This technology drastically reduces water and detergent consumption
• The reduced water consumption and the reduced time needed for the carpet or rug to dry, also reduces the risk of mold formation
• The fibers of carpets and rugs are cleaned and restored thanks to the vibration which removes the dirt particles even from deep down
• Maximum comfort for users thanks to the roto-orbital movement, which offers great stability, ease of use and maneuverability
• Anti-corrosion steel structure
• Large rubber wheels for easy transport
• The brush head can be tilted back 90° to make pad replacement easier
• Quick release of the motor brush head from the chassis and of the 17kg weight. Quick disconnection of electrical system
• The best ergonomics thanks to the new, more comfortable handle ensuring an even more secure grip in all working conditions. The handle itself features an internal steel reinforcement for more precise maneuverability and greater durability
• Double safety system: the single disc machine is activated only when the handlebar levers and the safety button are simultaneously pressed. When the levers are released the single disc machine stops
• Three-position dispensing button: continuous, neutral and intermittent dispensing
• Polyethylene tank with graduated scale and cap. The tank can be removed, without using any tool, for easy filling
• Option to install the vacuum kit to expand the fields of use: resanding and restoring parquet without generating dust, thereby reducing marble smoothing and polishing times
• The low electrical energy absorption of this machine means that it can even be used together with a vacuum cleaner, with both appliances powered by standard mains voltage
• Side connection cuff for external suction (optional)
• Stop&Go: when the machine is temporarily idle, the brushes are halted so as to optimize consumption and reduce waste
