CS100/120
The CS100 and CS120 ride-on industrial sweepers are at the top of the range in terms of power, performance, resistance and ability to perform heavy duty tasks. Extremely versatile, CS100/CS120 were designed to collect both solid debris and light dust extremely easily.
Two different working widths are available: 100 and 120 cm, and battery- or diesel-powered. The CS120 model is also available with Bifuel endothermic engine (gasoline/LPG) to reduce consumption and emissions.

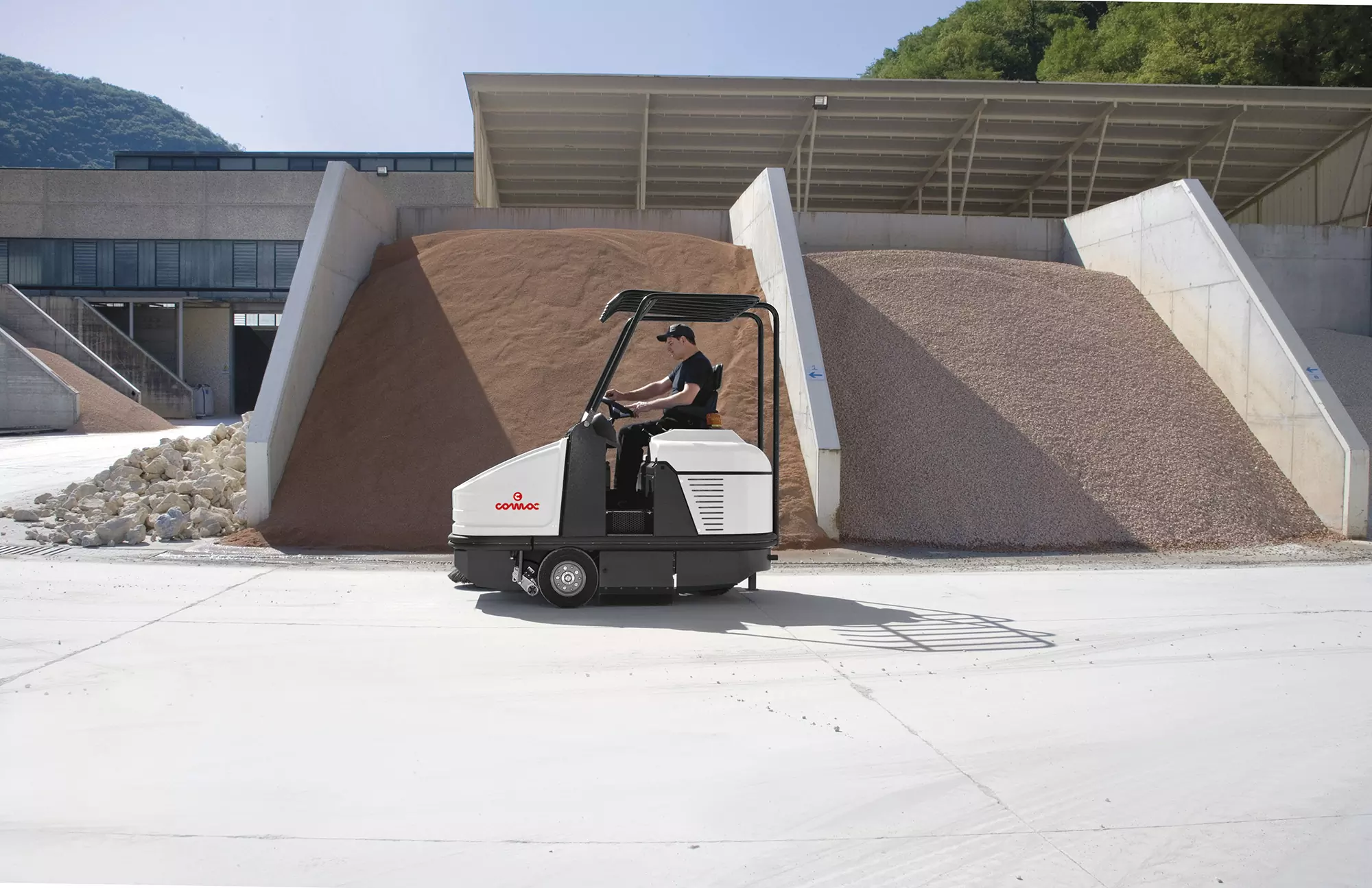

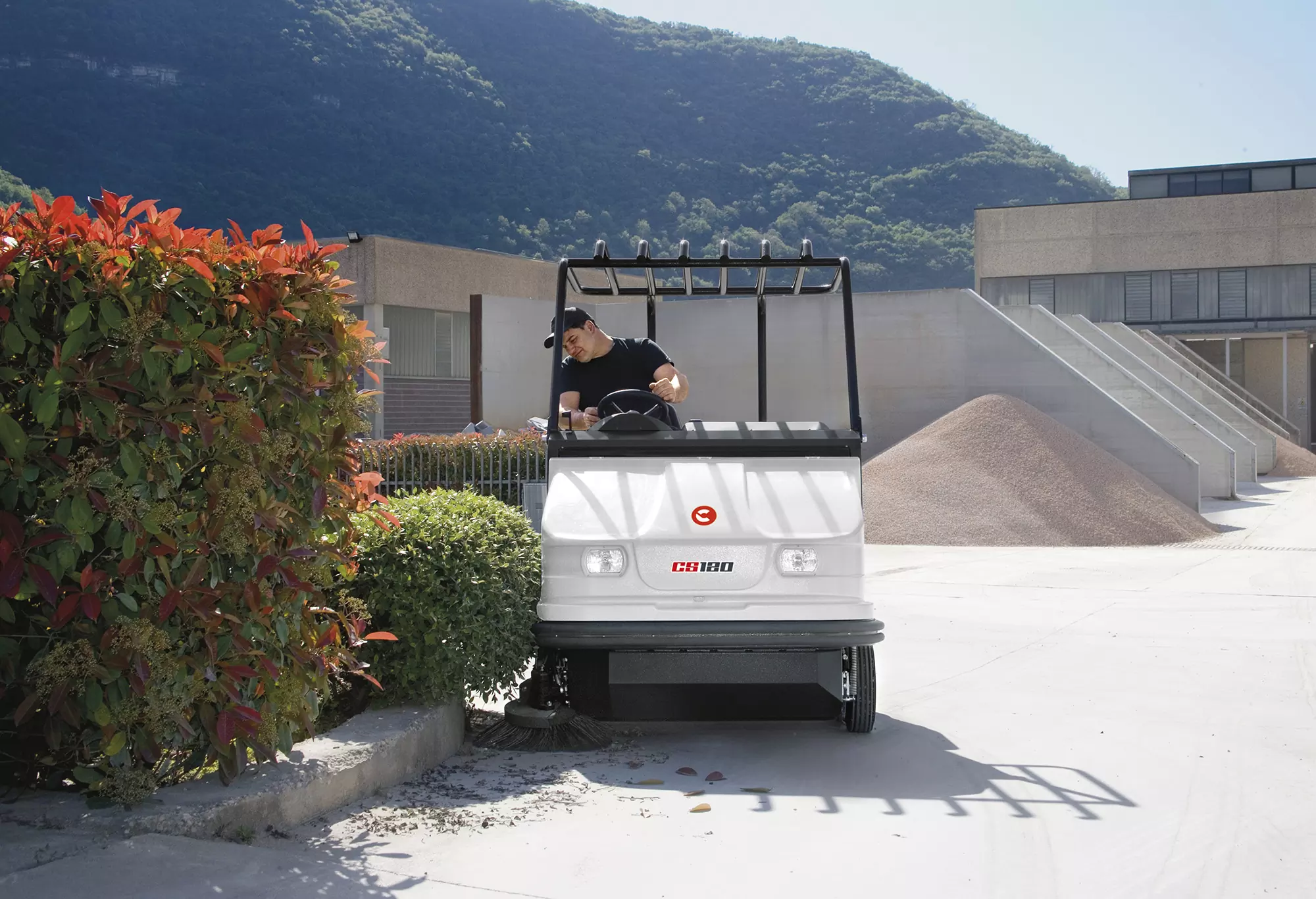

These extremely high-performance sweepers are suitable for cleaning the most resistant dirt over vast surfaces, both outdoor and indoor. They are particularly effective in industrial environments, milling and feed industrial structures, mining industrial structures, large car parks, port areas and airports and on surfaces measuring up to 40,000 sq.m.
Two different working widths are available: 100 and 120 cm, and battery- or diesel-powered. The CS120 model is also available with Bifuel endothermic engine (gasoline/LPG) to reduce consumption and emissions.
These extremely high-performance sweepers are suitable for cleaning the most resistant dirt over vast surfaces, both outdoor and indoor. They are particularly effective in industrial environments, milling and feed industrial structures, mining industrial structures, large car parks, port areas and airports and on surfaces measuring up to 40,000 sq.m.
-
Debris hopper capacity:
570-600 l
-
Working width of the central brush:
1000-1200 mm
-
Filling system:
front
- Documents
- Request information
- FAQ
-
Debris hopper capacity:
570-600 l
Working width of the central brush:
1000-1200 mm
Filling system:
front
- Documents
- Request information
- FAQ
CS100 B
Technical data
- Theoretical productivity (up to sqm/h)
9450 - Working width with central brush (mm)
1000 - Working width with side brush (mm)
1350 - Working width with two side brushes (mm)
1700 - Central brush (Ø/mm)
Ø380x1000 - Side brush (mm)
500 - Standard filter (format)
Pocket - Standard filter (material)
Fabric - Filtering surface (sq.m.)
10 - Debris hopper capacity (l)
570 - Type of drainage
Hydraulic - Supply/traction (V)
Battery 36V/ aut. hydraulic - Machine dimensions (l x h x w) (mm)
2330x1720x1380
CS100 D
Technical data
- Theoretical productivity (up to sqm/h)
11475 - Working width with central brush (mm)
1000 - Working width with side brush (mm)
1350 - Working width with two side brushes (mm)
1700 - Central brush (Ø/mm)
Ø380x1000 - Side brush (mm)
500 - Standard filter (format)
Pocket - Standard filter (material)
Fabric - Filtering surface (sq.m.)
10 - Debris hopper capacity (l)
570 - Type of drainage
Hydraulic - Supply/traction (V)
Diesel/aut. hydraulic - Machine dimensions (l x h x w) (mm)
2330x1720x1380
CS120 B
Technical data
- Theoretical productivity (up to sqm/h)
10850 - Working width with central brush (mm)
1200 - Working width with side brush (mm)
1550 - Working width with two side brushes (mm)
1850 - Central brush (Ø/mm)
Ø380x1200 - Side brush (mm)
500 - Standard filter (format)
Pocket - Standard filter (material)
Fabric - Filtering surface (sq.m.)
11 - Debris hopper capacity (l)
600 - Type of drainage
Hydraulic - Supply/traction (V)
Battery 36V/ aut. hydraulic - Machine dimensions (l x h x w) (mm)
2330x1720x1510
CS120 D
Technical data
- Theoretical productivity (up to sqm/h)
13175 - Working width with central brush (mm)
1200 - Working width with side brush (mm)
1550 - Working width with two side brushes (mm)
1850 - Central brush (Ø/mm)
Ø380x1200 - Side brush (mm)
500 - Standard filter (format)
Pocket - Standard filter (material)
Fabric - Filtering surface (sq.m.)
11 - Debris hopper capacity (l)
600 - Type of drainage
Hydraulic - Supply/traction (V)
Diesel/aut. hydraulic - Machine dimensions (l x h x w) (mm)
2330x1720x1510
CS120 Bifuel
Technical data
- Theoretical productivity (up to sqm/h)
13175 - Working width with central brush (mm)
1200 - Working width with side brush (mm)
1550 - Working width with two side brushes (mm)
1850 - Central brush (Ø/mm)
Ø380x1200 - Side brush (mm)
500 - Standard filter (format)
Pocket - Standard filter (material)
Fabric - Filtering surface (sq.m.)
11 - Debris hopper capacity (l)
600 - Type of drainage
Hydraulic - Supply/traction (V)
Bifuel LPG /aut. hydraulic - Machine dimensions (l x h x w) (mm)
2330x1720x1510
CS100 B
Technical data
- Theoretical productivity (up to sqm/h)
9450 - Working width with central brush (mm)
1000 - Working width with side brush (mm)
1350 - Working width with two side brushes (mm)
1700 - Central brush (Ø/mm)
Ø380x1000 - Side brush (mm)
500 - Standard filter (format)
Pocket - Standard filter (material)
Fabric - Filtering surface (sq.m.)
10 - Debris hopper capacity (l)
570 - Type of drainage
Hydraulic - Supply/traction (V)
Battery 36V/ aut. hydraulic - Machine dimensions (l x h x w) (mm)
2330x1720x1380
CS100 D
Technical data
- Theoretical productivity (up to sqm/h)
11475 - Working width with central brush (mm)
1000 - Working width with side brush (mm)
1350 - Working width with two side brushes (mm)
1700 - Central brush (Ø/mm)
Ø380x1000 - Side brush (mm)
500 - Standard filter (format)
Pocket - Standard filter (material)
Fabric - Filtering surface (sq.m.)
10 - Debris hopper capacity (l)
570 - Type of drainage
Hydraulic - Supply/traction (V)
Diesel/aut. hydraulic - Machine dimensions (l x h x w) (mm)
2330x1720x1380
CS120 B
Technical data
- Theoretical productivity (up to sqm/h)
10850 - Working width with central brush (mm)
1200 - Working width with side brush (mm)
1550 - Working width with two side brushes (mm)
1850 - Central brush (Ø/mm)
Ø380x1200 - Side brush (mm)
500 - Standard filter (format)
Pocket - Standard filter (material)
Fabric - Filtering surface (sq.m.)
11 - Debris hopper capacity (l)
600 - Type of drainage
Hydraulic - Supply/traction (V)
Battery 36V/ aut. hydraulic - Machine dimensions (l x h x w) (mm)
2330x1720x1510
CS120 D
Technical data
- Theoretical productivity (up to sqm/h)
13175 - Working width with central brush (mm)
1200 - Working width with side brush (mm)
1550 - Working width with two side brushes (mm)
1850 - Central brush (Ø/mm)
Ø380x1200 - Side brush (mm)
500 - Standard filter (format)
Pocket - Standard filter (material)
Fabric - Filtering surface (sq.m.)
11 - Debris hopper capacity (l)
600 - Type of drainage
Hydraulic - Supply/traction (V)
Diesel/aut. hydraulic - Machine dimensions (l x h x w) (mm)
2330x1720x1510
CS120 Bifuel
Technical data
- Theoretical productivity (up to sqm/h)
13175 - Working width with central brush (mm)
1200 - Working width with side brush (mm)
1550 - Working width with two side brushes (mm)
1850 - Central brush (Ø/mm)
Ø380x1200 - Side brush (mm)
500 - Standard filter (format)
Pocket - Standard filter (material)
Fabric - Filtering surface (sq.m.)
11 - Debris hopper capacity (l)
600 - Type of drainage
Hydraulic - Supply/traction (V)
Bifuel LPG /aut. hydraulic - Machine dimensions (l x h x w) (mm)
2330x1720x1510
Sweepers CS100/120 Features
- Three types of power supply: battery, diesel and Bifuel to meet different cleaning needs
- Maximum comfort for the operator: adjustable steering wheel and super-comfortable seat with armrests
- Access from both sides
- Innovative instrument panel, inspired by automobile industry, provides all functions available at a glance
- Automatic emptying: The frontal dirt collection container is lifted by a 2-piston hydraulic system, operated by a handy control on the driver's seat. The vacuum is activated by a hydraulic motor
- Electrical filter shaker, directly controlled by a button on the instrument panel, keeping the pocket vacuum filter constantly clean and practically eliminating its maintenance
- The controls and motors fitted on the CS100/CS120 models are hydraulically operated to guarantee reliability and ease of use
- All models feature an oil cooler with independent thermostat and solenoid valve in order to keep oil temperature within the ideal range and ensure best efficiency. In this way consumption is reduced and components’ life extended
- Forward movement/reverse pedal power assisted for particularly smooth and precise operation
- Maximum access to the engine compartment, so any type of maintenance, such as changing the oil or filters, can be done inside the machine very easily
- Pressure and height adjustment of the central brush independent
- Floating and self-adjusting central brush keeps in contact with the ground all the time

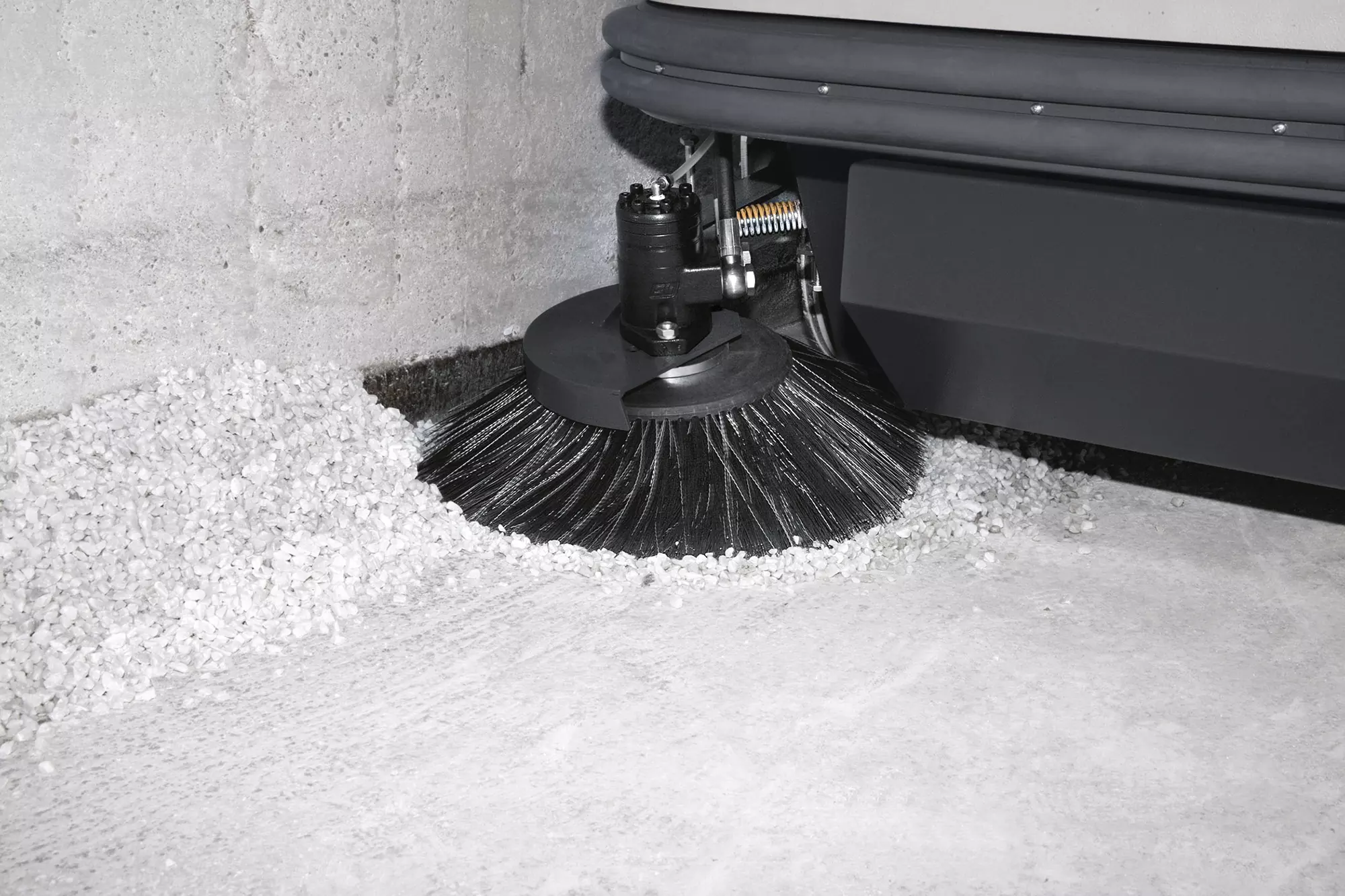

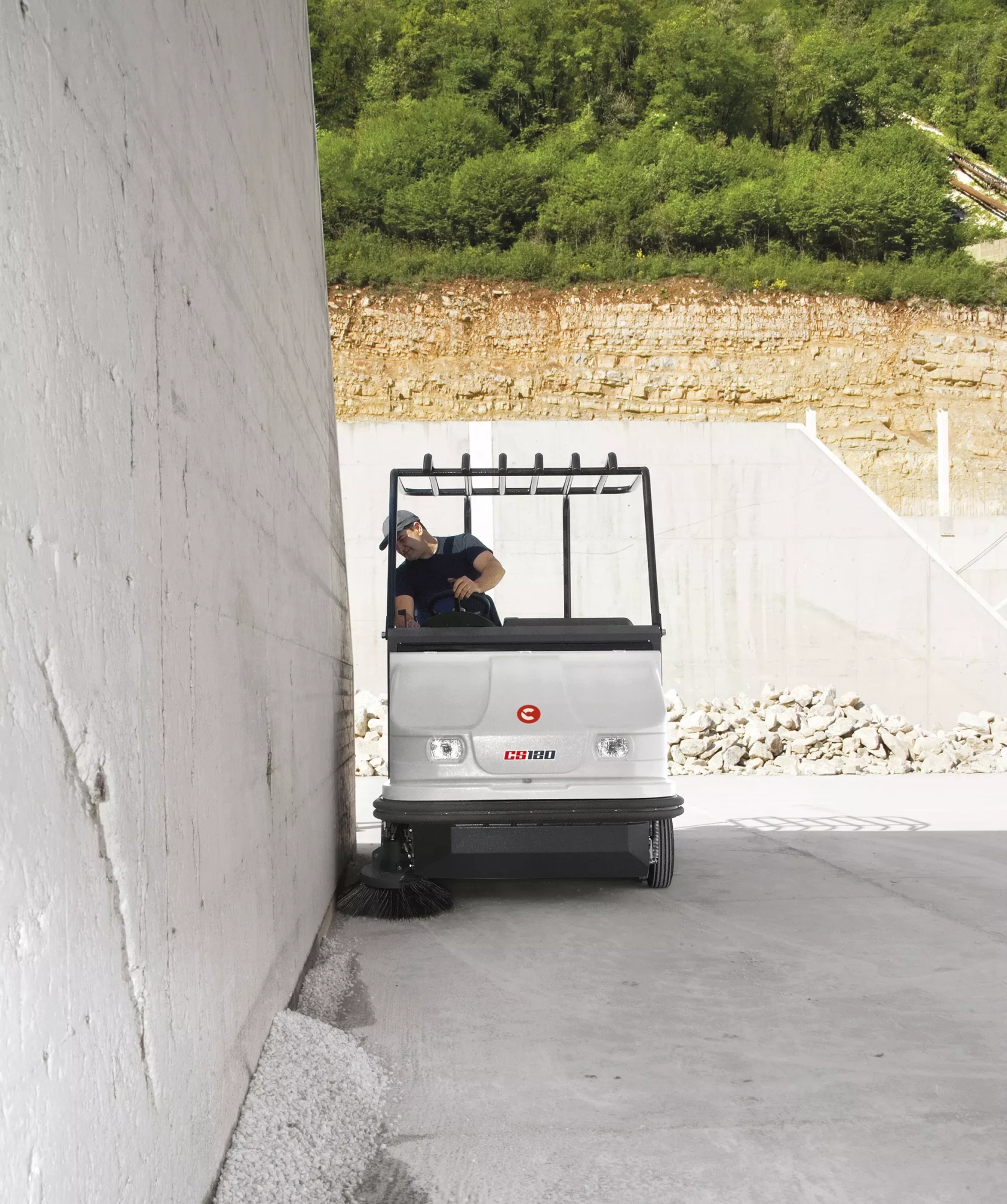

- Side brush retracts in the event of accidental knocks, thus avoiding all possible damage. The brush's slanting angle can be adjusted to better adapt to cleaning along borders, etc.
- Optimized hydraulic system to fully exploit the sweeping machine's performance while using the least possible amount of oil.
- The autonomy of the battery-powered version can be up to 5 hours
- The rear motorwheel traction drive makes the machine safe and maneuverable, ensuring an extremely tight curve radius
- Fabric pocket filter, with large filtering surface area of over 10 sq.m., is long-lasting and offers excellent vacuum results, even in environments where large amounts of fine dusts are present. No maintenance is required thanks to the regular use of the electrical filter shaker
- The innovative steering wheel has been designed to make driving extremely comfortable
- Besides reducing mechanical stress the large diameter wheels also make working more comfortable. Their robust support contributes to maintaining operating characteristics unaltered
- Hydraulically operated brakes
- Headlights as standard to make the sweeper more visible when operating and improve visibility
- Blinking light kit to increase safety by indicating that the machine is passing
- Overhead guard to protect operators
- Seat belts
- Glass cabin, offering wide visibility, ideal for operating outdoors with the possibility of equipping it with air conditioning
- Also available as a type-approved street version
- Emergency button to immediately stop the machine and all active functions in an emergency
- The coaxial turbine offers excellent vacuum performance and a significant reduction in maintenance
